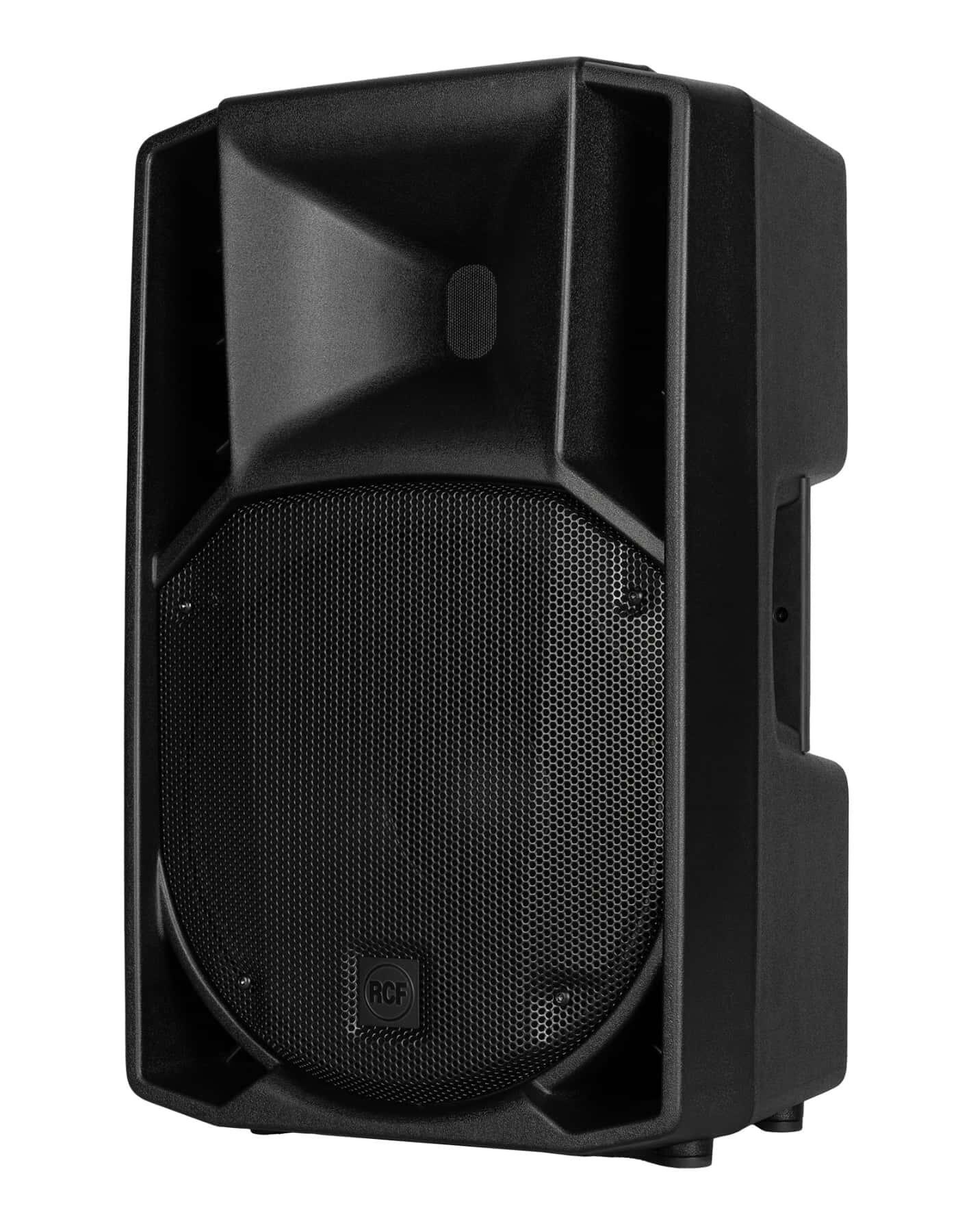

- ART 712-A MK5 Active Two-Way Speaker
- Description
ART 712-A MK5 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
- 129 dB Max SPL
- 1400 WATT 2-way peak power
- Innovative DSP Processing
- 1" Compression Driver, 1.75" v.c.
- 12" Woofer
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
- XBOOST Low Frequency Enhancer
- Technology
NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow the speaker to achieve coherent distribution of sound for all listeners without phase distortions whilst ensuring minimum latencies to the system.
Andrea Capra describes how RCF's FiR filtering technology improves the sound of their speakers.
SUPERIOR TRANSDUCERS
The woofers and compression drivers are precision built taking advantage of RCF’s technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.
POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
EXPERIENCE THE DEPTHS OF SOUND
XBoost unlocks the profound low frequencies concealed within ART speakers. With a simple activation from the speaker's rear panel, immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass, ensuring that every note retains its pristine essence and keeping the woofer excursion under control.
BRING ART WITH YOU
The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.
- Specifications
Acoustical specifications
- FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 129 dB
- HORIZONTAL COVERAGE ANGLE: 90°
- VERTICAL COVERAGE ANGLE: 60°
Transducers
- COMPRESSION DRIVER: 1 x 1.0'', 1.75'' v.c
- WOOFER: 12'', 2.5'' v.c
Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XLR, Jack
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
- MIC. INPUT SENSITIVITY: -32 dBu
Processor section
- CROSSOVER FREQUENCIES: 1600 Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Soft Limiter
- CONTROLS: Volume, Boost, Mic/Line
Power section
- TOTAL POWER: 1400 W Peak, 700 W RMS
- HIGH FREQUENCIES: 400 W Peak, 200 W RMS
- LOW FREQUENCIES: 1000 W Peak, 500 W RMS
- COOLING: Convection
- CONNECTIONS: VDE
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: PP Composite
- HARDWARE: 2 x M10
- HANDLES: 1 Top, 2 Side
- POLE MOUNT/CAP: Yes
- GRILLE: Steel
- COLOR: Black
Size
- HEIGHT: 637 mm / 25.08 inches
- WIDTH: 387 mm / 15.24 inches
- DEPTH: 363 mm / 14.29 inches
- WEIGHT: 17.8 kg / 39.24 lbs
Shipping information
- PACKAGE HEIGHT: 680 mm / 26.77 inches
- PACKAGE WIDTH: 440 mm / 17.32 inches
- PACKAGE DEPTH: 420 mm / 16.54 inches
- PACKAGE WEIGHT: 20.6 kg / 45.42 lbs
