CSP-410 powered mixer 400W
- Description

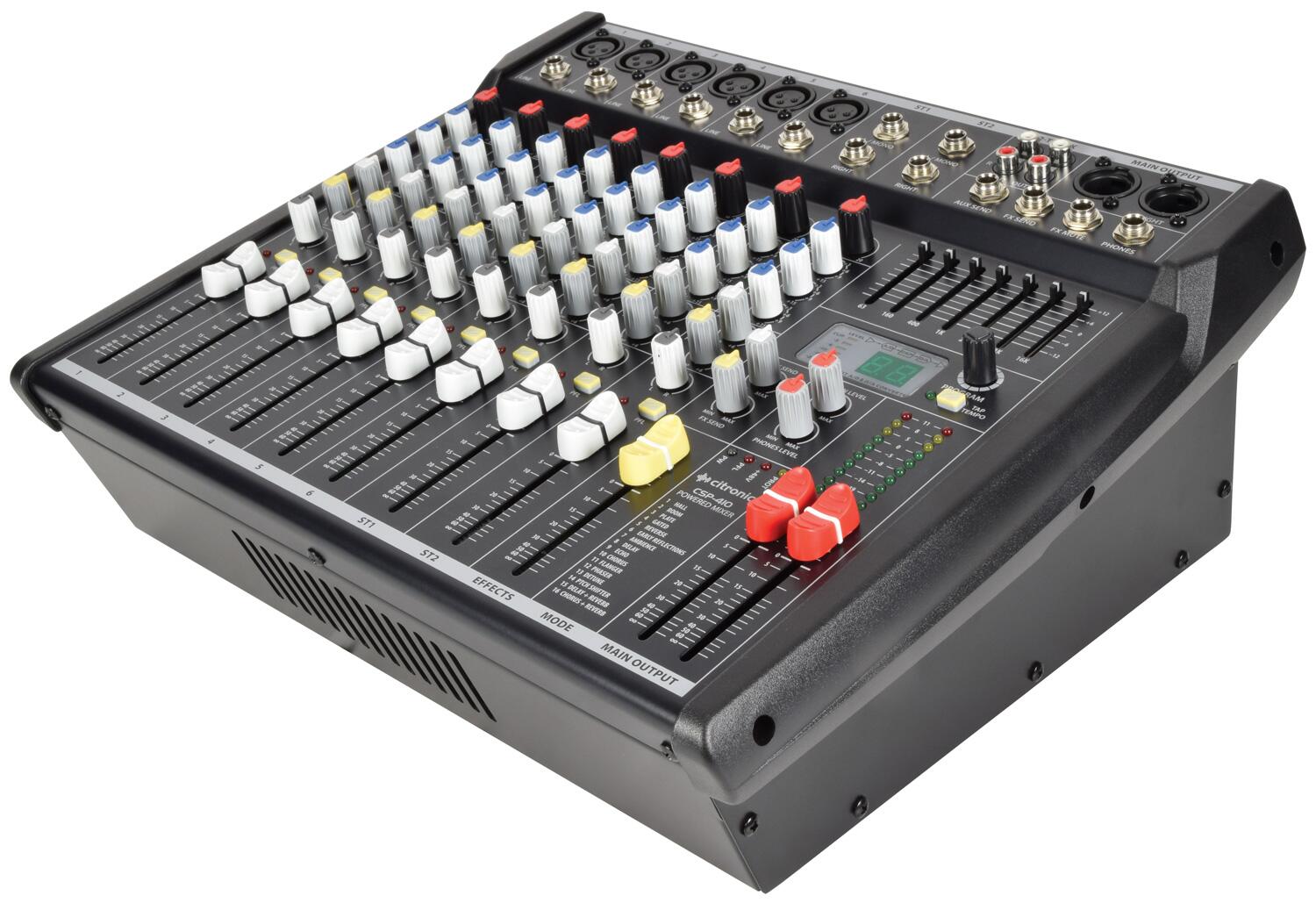

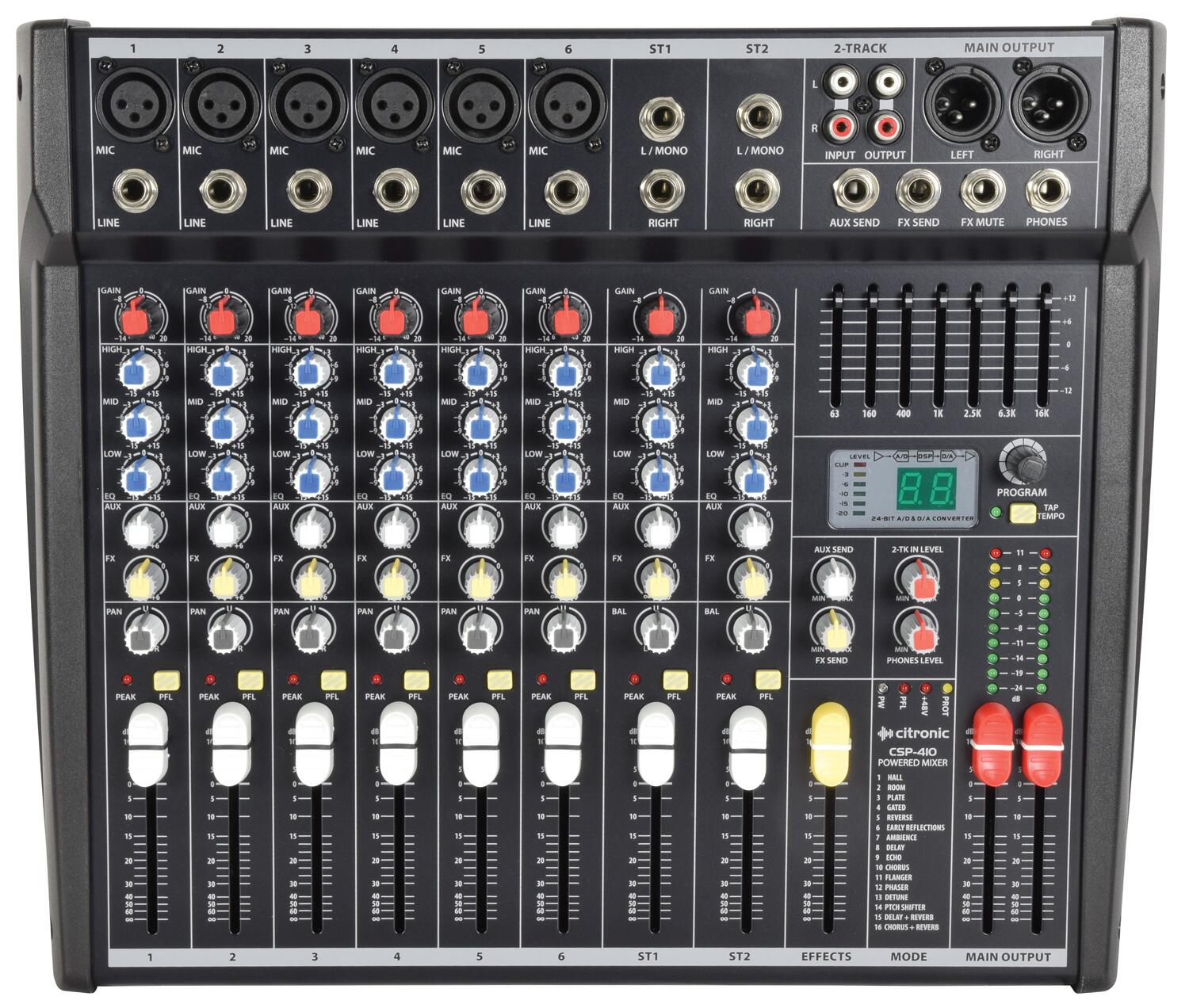

Citronic CSP-410 is a powered mixer with 6 balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
- Features
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- Balanced main outputs
- Internal stereo power amplifier
- 2 x 200W RMS @ 4 Ohms
- 2 x 130W RMS @ 8 Ohms
- Specifications
Power supply: 230Vac 50Hz (IEC)
Input level: +24dBu
Output level : line: +26dBu
Frequency response: 20Hz-30kHz (0.5dB)
CMRR: >74dB (mic 1kHz)
THD +N: <0.01% (channel to main out)
Crosstalk: >85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz: -122dBu (EIN), -82dBu (mix)
EQ: high: 12kHz ±15dB shelving
EQ: mid: 2.5kHz ±15dB band pass
EQ: low: 80Hz ±15dB shelving
Input impedance : mic (balanced): 2k Ohms
Input impedance : line (balanced): 10k Ohms
Sensitivity : mic: -60 to +14dBu
Sensitivity : line: -40 to +14dBu
2-track: 2 x RCA in & out (-2dBu)
Effects: 16 program DSP (24-bit sigma-delta, 40khz)
Output impedance: <75 Ohms
Headphone output: 6.3mm jack, 30-600 Ohms

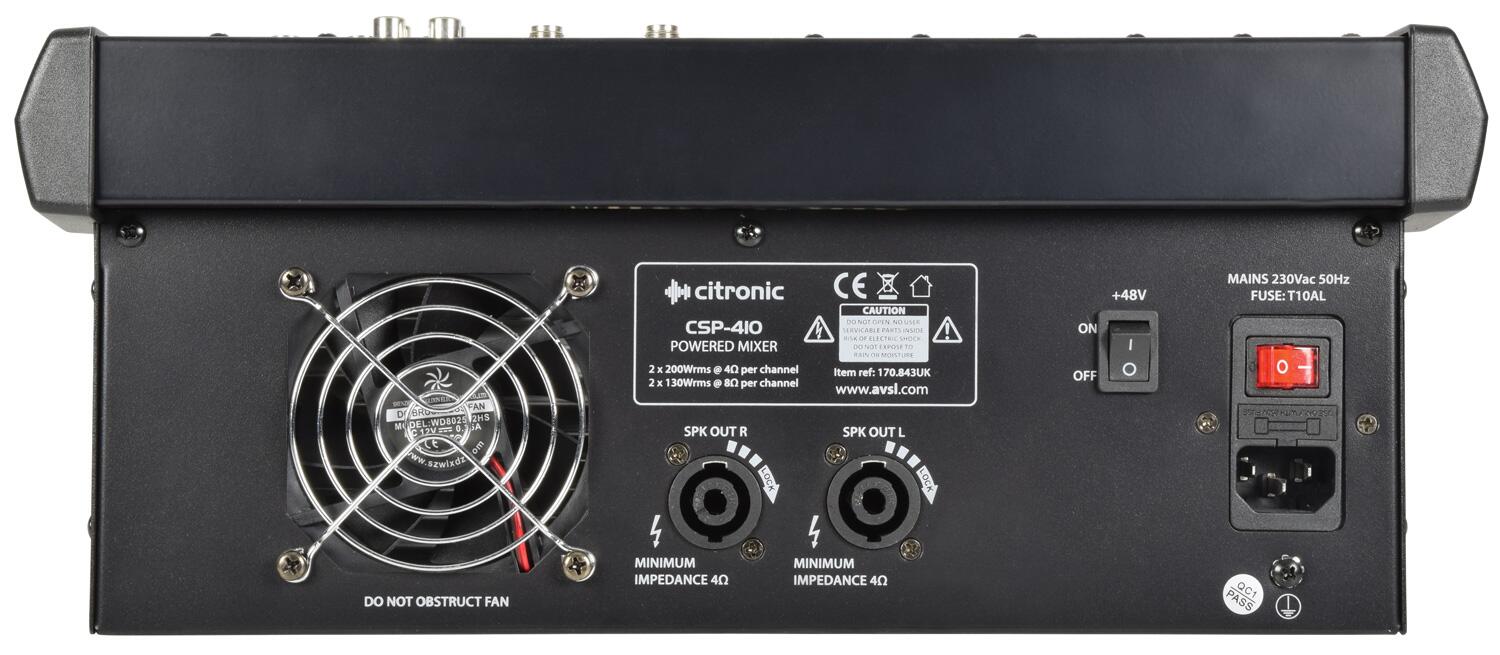

Speaker : outputs: L+R SPK connectors
Phantom power: +48V (XLR inputs)
