Martin Audio Blackline XP15 & XP118 package

The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker. It features a 15” (380mm)/3” (75mm)voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.

Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. On-board DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use colour display on the rear panel. DSP features include crossover function, a three-channel mixer with three band EQ on each input channel and a choice of three voicing resets and operating modes for flexible operation without external processing.

The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.

With optional Bluetooth control, streaming and a built-in three channel mixer, BlacklineX Powered puts Martin Audio signature stadium sound at your fingertips.

Features

• High output, self-powered, portable two-way system
• 1300W of Class D amplification
• Global power supply with PFC (Power Factor Correction)
• Onboard DSP with rotary control interface
• Multi-function display for metering, control and function selection
• Three-channel mixer
• Three-band channel EQ, plus HPF (Ch1/2)
• Independent LF and HF peak and RMS limiters
• Three speaker mode and voicing presets
• Bluetooth® control and streaming option
• Durable plywood enclosure
• User-rotatable 80° x 50° HF horn
• Vertical and horizontal mounting options
• Symmetrical multi-angle enclosure for PA or stage monitor use
• Screw-free, cloth-backed steel grille
• Integral ergonomic handles
• Mounting options include pole-mount and flying inserts

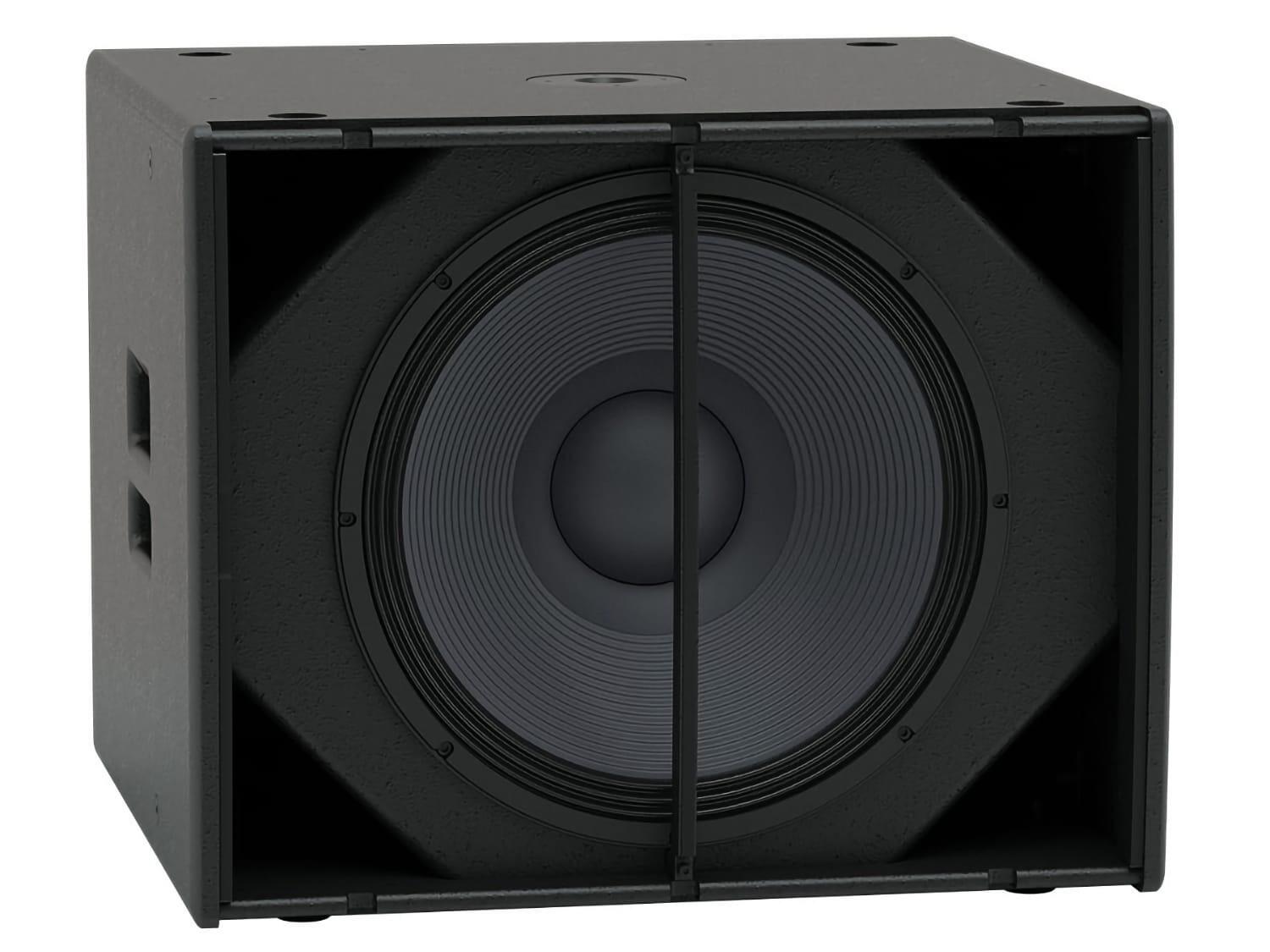

The XP118 is a compact, high performance subwoofer for indoor use with the XP12 and XP15 full-range loudspeakers. It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked in omni or cardioid mode, or flown via integral M10 insets. It features a long-excursion 18” (460mm)/4” (100mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels.

A convection-cooled Class D amplifier module delivers 2000Wpeak output to the driver for maximum low frequency extension and chest-thumping punch. Crossover, EQ, metering and control functions are provided by on-board DSP via a rotary encoder interface and multi-function colour screen on the rear panel.

The XP118 enclosure is built for the road, constructed from durable plywood and finished in textured black paint. A perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount socket in the top surface and two ergonomic side handles.

Features

• Compact, self-powered subwoofer
• 1 x 18” (460mm) driver with 4” (100mm) voice coil
• 2000W of Class D amplification
• Global power supply with PFC (Power Factor Correction)
• On-board DSP with rotary control interface
• Multi-function display for metering, control and function selection
• Peak and RMS limiters
• Bluetooth® control and streaming option
• Durable plywood enclosure
• Screw-free, perforated steel grille
• Integral ergonomic handles 35mm pole-mount socket
