Brand Logo  ART 912-A & SUB 705 MK3 Package

£0.00
£2,169.00
RCF ART 912-A & SUB 705 MK3 PackageClick the image to enlarge
£0.00
£2,169.00
Save
Earn 0 reward points with this product.
  • Description

    Our ART 912-A & SUB 705 MK3 Package delivers very high quality sound with great coverage. With over 5000 Watts of power this package is great for a wide variety of applications yet remains compact and portable.The package includes:

    • 2 x RCF ART 912-A Professional Active Speaker
    • 1 x RCF SUB 705-AS MK3 Active Subwoofer
    • 1 x Heavy Duty Speaker Stand Kit with Carry Bag
    • 2 x Professional 6m XLR to XLR input leads
    • 2 x Professional 3m XLR to XLR input leads
    • 3 Year RCF Warranty

    Superbly designed to deliver supreme sound the ART 912-A lends itself to a wide range of applications from monitoring to front of house. The experts at RCF have drawn on decades of experience of producing some of the finest active speakers to create the ART 9 Series which outperforms the competition to give you the clearest sound available.

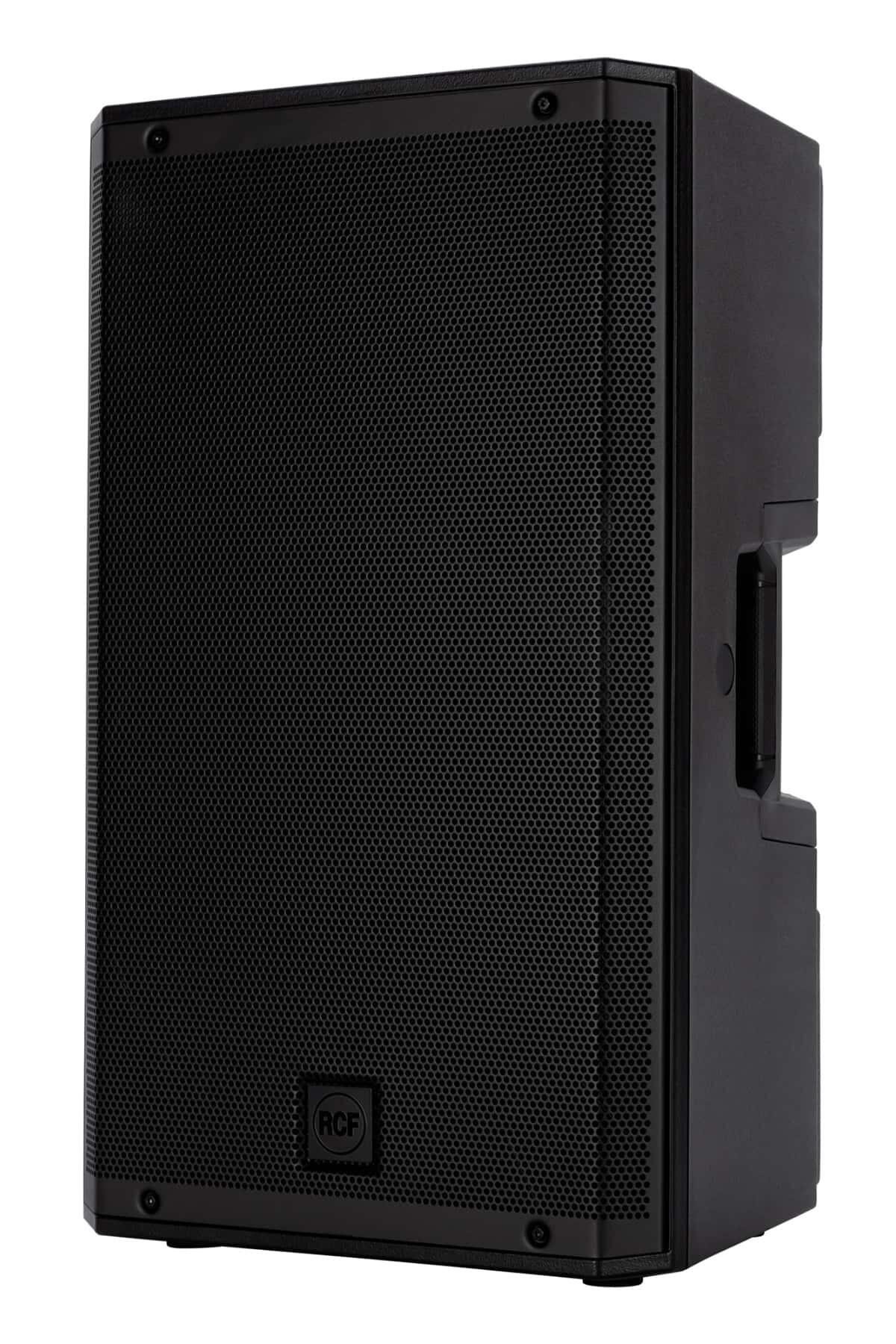

    ART 912-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 12" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 912-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

  • Power That Moves


    The most powerful amplifier in its class

    RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2,100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. ART 9 is very energy-efficient so there is no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the back of the unit - with no moving parts. Being physically connected with the internal frame, the amplifier is firm and solid within the cabinet. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All ART 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

  • Superior Highs & Lows


    The advanced design of ART9 lies within the housing of the speaker. The new True Resistive Waveguide is the result of several refinements in both the transducers' and the vented ports' design with Finite Element Analysis, and constant measurement in RCF anechoic chambers. Thanks to FiRPHASE technology, the new shape, and the placement of the ports, the speaker now acts as a single ideal source for a perfect sound image. Acoustically, the TRW waveguide mimics a resonance-free pure resistive load reducing the high-frequency distortion of a classic horn. With its asymmetrical sound shaping, the coverage angle of the waveguide provides constant directivity to the entire listening area and improved stereo panorama.


    High frequencies

    The new 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs make it 10 times more durable than previous models. We also redesigned the phase plug to increase sound clarity and precision, also improving coupling with the low-frequency transducer.

    Low frequencies

    Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels. Only the best woofer design can fit ART 9.


  • Next Generation DSP


    When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. Speakers with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

    The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive, but change the phase behavior, the new BMC algorithm breaks conventional rule. In combination with FiRPHASE technology, ART 9 & NX 9 have a level of DSP audio performance never achieved in this range of speakers.

  • SUB 705-AS MK3

    The SUB 705-AS MK3 is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 131 dB with exceptional headroom. Designed as the ideal complement for 10" or 12" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 705-AS MK3 is perfect for small to mid-sized venues and portable applications.

    • 1400 Watt Digital Amplifier
    • 15" Woofer, bass reflex housing
    • Stereo crossover
    • Switchable crossover frequencies
    • Phase-reverse switch
    • Electronic equalization, soft limiter and protection
    • Stereo XLR input, Stereo XLR signal output
    • Bass Motion Control excursion management


    ACOUSTICAL SPECIFICATIONS

    • Frequency Response: 40 Hz - 120 Hz
    • Max SPL: 131 dB
    • Woofer: 15", 3.0" v.c.

    INPUT/OUTPUT SECTION

    • Input connectors: Stereo XLR
    • Output connectors: Stereo XLR
    • Input sensitivity: -2 dBu / +4 dBu

    PROCESSOR SECTION

    • Crossover frequencies: 80-110 Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Volume, EQ, phase, Xover

    AMPLIFIER SPECIFICATIONS

    • Total power: 1400 W PEAK
    • Low frequencies:1400 W PEAK
    • Total power: 700 W RMS
    • Low frequencies: 700 W RMS
    • Cooling: Convection
    • Connections: VDE connector

    CABINET

    • Cabinet Material: Baltic birch plywood
    • Hardware: M20 Pole mount
    • Handles: 2 side
    • Grille:Steel
    • Colour:Black

    PHYSICAL SPECIFICATIONS

    • Height: 598/23.54 mm/inch
    • Width: 420/16.54 mm/inch
    • Depth:590/23.23 mm/inch
    • Net Weight:27.5/60.63 kg/lbs
